HOME ＞ PRODUCTS ＞ Cutters for Construction ＞ Wire Rope Cutter with Aluminum Handles

Series:

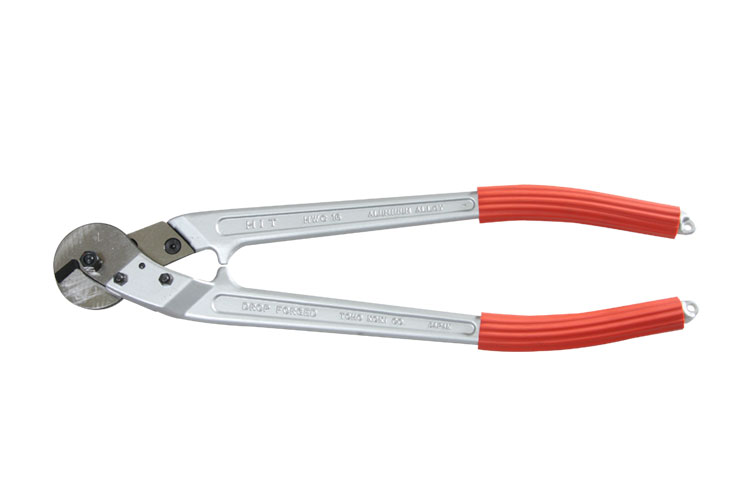

Wire Rope Cutter with Aluminum Handles

Item No.:

HWC9/12/16

A series of light weight wire rope cutters that can replace its blade head.
This type of cutter is strong enough to cut normal wire ropes, Japan IV cables, Japan ACSR cables and aircraft cables.
*Actual cutting result depends on surface and material condition.

Tool No.	Length	Weight	Capacity Japanese materials
HWC 9	335mm	0.8kg	Wire rope：φ9mm diameter Japan insulated copper cable (IV cable)：22mm² (φ9.2mm dia.) ACSR：25mm²(φ6.9mm dia.)
HWC 12	520mm	1.5kg	Wire rope：φ12mm diameter Japan insulated copper cable (IV cable)：50mm² (φ13mm dia.) ACSR：58mm²(φ10.5mm dia.)
HWC 16	650mm	2.3kg	Wire rope：φ16mm diameter Japan insulated copper cable (IV cable)：100mm² (φ17mm dia.) ACSR：120mm²(φ16.1mm dia.)
